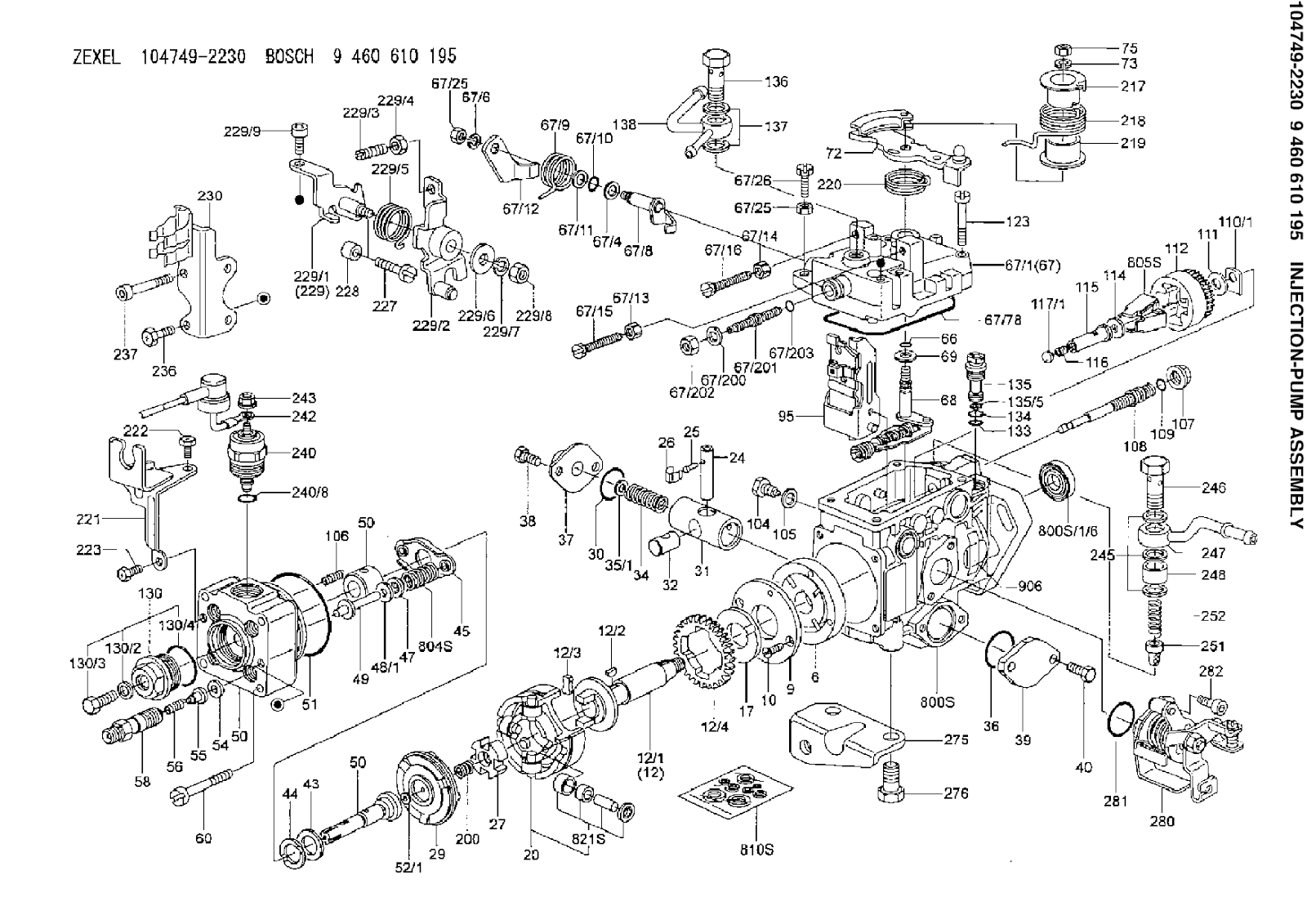

9460610195, 104749-2230 DISTRIBUTOR INJECTION FUEL PUMP ZEXEL

9460610195, 104749-2230 DISTRIBUTOR INJECTION FUEL PUMP ZEXEL


9460610195, 104749-2230 DISTRIBUTOR INJECTION FUEL PUMP ZEXEL
9460610195, 104749-2230 DISTRIBUTOR INJECTION FUEL PUMP ZEXEL



9460610195, 104749-2230 DISTRIBUTOR INJECTION FUEL PUMP ZEXEL


6 146100-0220 9 461 611 363 16850V7200 SUPPLY PUMP 1 pc.
9 146103-0100 9 461 611 411 16854V7200 COVER 1 pc.
10 139104-0000 9 411 610 049 8942274790 FLAT-HEAD SCREW 2 pc.
12 146200-0420 9 461 610 690 167301C511 DRIVE SHAFT 1 pc.
12/1 146200-0400 9 461 610 689 16730V5700 DRIVE SHAFT 1 pc.
12/2 146201-0000 9 461 610 107 ME741035 WOODRUFF KEY 1 pc.
12/3 146202-0100 9 461 610 109 16733V0702 DAMPER 2 pc.
12/4 146203-0000 9 461 610 110 093324035 TOOTHED GEAR 1 pc.
17 146204-0000 9 461 610 111 8942274840 PLAIN WASHER 1 pc.
20 146210-1820 9 461 611 365 16740G5500 ROLLER SET 1 pc.
24 146303-0000 9 461 610 147 8942274860 BEARING PIN 1 pc.
25 146304-0000 9 461 610 148 ME741052 BEARING PIN 1 pc.
26 146305-0000 9 461 610 149 8942274880 CLAMPING BAND 1 pc.
27 146205-0000 9 461 610 112 8942274890 SLOTTED WASHER 1 pc.
29 146220-0020 9 461 610 119 16750V1700 CAM PLATE 1 pc.
30 146600-0800 9 461 610 421 8942274910 O-RING 1 pc.
31 146311-5020 9 461 611 369 16820V7201 PUMP PLUNGER 1 pc.
32 146301-0200 9 461 612 353 ME741050 SLIDING PIECE 1 pc.
34 146312-0900 9 461 611 370 16825V7200 COMPRESSION SPRING:K=0.115KG/MM 1 pc.
35/1 146603-8100 9 461 611 479 1688043G00 SHIM:D11.3&4T0.6 0 pc.
37 146310-0600 9 461 611 414 1682743G00 COVER 1 pc.
38 146620-5000 9 461 612 038 8943132760 BLEEDER SCREW 2 pc.
39 146310-0100 9 461 610 151 093324059 COVER 1 pc.
43 146230-0000 9 461 610 123 16764V0700 SHIM 1 pc.
44 146230-0100 9 461 610 124 093324072 PLAIN WASHER 1 pc.
45 146231-0001 9 461 614 270 8942275161 SLOTTED WASHER 1 pc.
47 146233-0000 9 461 610 128 16768V0700 SLOTTED WASHER 2 pc.
48/1 146690-7200 9 461 615 908 1688243G00 SHIM:D17&5.2T0.4 1 pc.
49 146234-0020 9 461 610 129 ME741799 GUIDE PIN 2 pc.
50 146400-6820 9 461 611 303 1676043S00 HYDRAULIC HEAD 1 pc.
51 146600-0000 9 461 610 413 093324105 O-RING 1 pc.
52/1 146420-0000 9 461 610 177 8942275280 SHIM:D9.5&3.0T1.90 1 pc.
54 146433-0100 9 461 610 239 093324141 GASKET:D12&6.4T1.00 4 pc.
55 146430-0120 9 413 610 008 8942406190 DELIVERY-VALVE ASSEMBLY 4 pc.
56 146432-0000 9 461 610 238 8942275810 COMPRESSION SPRING 4 pc.
58 146440-0220 9 461 610 241 091124144 FITTING 4 pc.
60 139106-0100 9 411 610 051 093324145 FLAT-HEAD SCREW 3 pc.
66 146600-0100 9 461 610 414 8942275850 O-RING 1 pc.
67 146502-8320 9 461 611 426 GOVERNOR COVER 1 pc.
67/1 146508-2820 9 461 613 738 GOVERNOR COVER 1 pc.
67/4 139310-0200 9 411 610 065 8942275900 PLAIN WASHER 1 pc.
67/6 014110-6440 9 442 610 020 0390411 LOCKING WASHER 1 pc.
67/8 146515-0020 9 461 611 097 1927535V00 LEVER SHAFT 1 pc.
67/9 146587-6700 9 461 610 864 19271G5500 COILED SPRING 1 pc.
67/10 146600-0200 9 461 610 415 8944332160 O-RING 1 pc.
67/11 146602-0100 9 461 610 435 SE0124344 PLAIN WASHER:D14&10.1T1.50 1 pc.
67/12 146540-2600 9 461 611 454 19270G5500 CONTROL LEVER 1 pc.
67/13 146621-1700 9 461 610 503 8944260470 UNION NUT 1 pc.
67/14 146621-1800 9 461 610 504 1924316A01 UNION NUT 1 pc.
67/15 146526-2800 9 461 610 278 1925989TA9 BLEEDER SCREW 1 pc.
67/16 146526-2900 9 461 610 279 8944260500 BLEEDER SCREW 1 pc.
67/25 013020-6040 9 442 610 010 0891110610 UNION NUT:M6P1H5 2 pc.
67/26 020306-3070 9 442 610 455 19244G5500 BLEEDER SCREW 1 pc.
67/78 146600-4400 9 461 615 663 1938899112 SEAL RING 1 pc.
67/200 139308-0300 9 411 610 063 8942275930 PLAIN WASHER 1 pc.
67/201 146545-1620 9 461 611 105 19290W4900 THREADED PIN 1 pc.
67/202 139208-0100 9 411 610 058 8942275970 UNION NUT 1 pc.
67/203 146600-1200 9 461 610 424 19295V0700 O-RING 1 pc.
68 146513-1720 9 461 612 215 CONTROL SHAFT 1 pc.
72 146535-1520 9 461 611 444 16705G5510 CONTROL LEVER 1 pc.
95 146551-3920 9 461 611 464 19251G5500 FULCRUM LEVER 1 pc.
104 146568-0000 9 461 610 342 RFB313VM5 SLOTTED SPRING PIN 2 pc.
105 026508-1140 0 986 613 069 228432310A GASKET:D11.4&8.2T1 2 pc.
106 146588-0500 9 461 611 663 ME741191 COILED SPRING 2 pc.
107 146569-0300 9 461 612 031 ME741146 UNION NUT 1 pc.
108 146570-0420 9 461 610 347 1921056M00 GOVERNOR SHAFT 1 pc.
109 146600-0400 9 461 610 417 19211V0700 O-RING 1 pc.
110/1 146571-0800 9 461 610 356 8942311260 SHIM:D20.2&8.3T1.75 1 pc.
111 146602-0600 9 461 610 437 19209V0700 PLAIN WASHER:D20&8.4T1.40 1 pc.
112 146572-0020 9 461 610 357 19200V0700 FLYWEIGHT ASSEMBLY 1 pc.
114 146602-0500 9 461 610 436 8942276140 PLAIN WASHER:D17&6.4T1.60 1 pc.
115 146575-2200 9 461 611 266 SEH113VL6 SLIDING SLEEVE 1 pc.
116 146576-0200 9 461 610 851 8944085190 CAP 1 pc.
117/1 146577-2700 9 461 610 392 19207W1700 PLUG:L3.90 1 pc.
123 139106-0200 9 411 610 052 19247V0700 FLAT-HEAD SCREW 4 pc.
130 146421-0020 9 461 610 236 16647G2404 CAPSULE 1 pc.
130/3 146422-0000 9 461 610 237 1666689TA3 BLEEDER SCREW 1 pc.
130/4 146600-0500 9 461 610 418 ME741203 O-RING 1 pc.
133 146600-0600 9 461 610 419 8942276400 O-RING 1 pc.
134 146600-0700 9 461 610 420 8942276410 O-RING 1 pc.
135 146110-0220 9 461 610 091 1686043G01 CONTROL VALVE 1 pc.
135/5 146114-0000 9 461 610 094 484624277 SPRING WASHER 1 pc.
136 146120-0220 9 461 610 097 16790V0700 OVER FLOW VALVE 1 pc.
137 139512-0200 9 411 610 074 8941695260 GASKET:D18.5&12.2T1.00 2 pc.
138 146605-5520 9 461 611 488 INLET UNION 1 pc.
200 146206-0100 9 461 610 113 16752V0700 COILED SPRING 1 pc.
217 146541-2900 9 461 610 318 1670616A00 SLOTTED WASHER 1 pc.
218 146587-4900 9 461 610 410 1670216A00 COILED SPRING 1 pc.
219 146541-3000 9 461 610 319 1922669T00 BUSHING 1 pc.
220 146587-3800 9 461 611 587 8944455700 COILED SPRING 1 pc.
221 146627-8320 9 461 611 519 16711G5500 BRACKET 1 pc.
222 139106-1100 9 411 610 079 1156290830 FLAT-HEAD SCREW 1 pc.
223 139106-0000 9 411 610 050 16828V0700 FLAT-HEAD SCREW 1 pc.
227 010206-2040 9 442 610 203 1926213C00 HEX-SOCKET-HEAD CAP SCREW 1 pc.
228 146614-6700 9 461 611 499 1684705E01 SPACER BUSHING 1 pc.
229 146628-2920 9 461 611 525 16713G5500 BRACKET 1 pc.
229/1 146628-0510 9 461 623 557 BRACKET 1 pc.
229/2 146616-9520 9 461 611 503 16717G5500 CONTROL LEVER 1 pc.
229/3 146620-1400 9 461 610 905 S21324392 FLAT-HEAD SCREW 1 pc.
229/5 146587-5100 9 461 610 860 1671516A70 COILED SPRING 1 pc.
229/6 146602-2000 9 461 610 866 16714V5700 PLAIN WASHER:D22&5.5T2 1 pc.
229/7 014110-5440 9 442 610 019 1311460100 LOCKING WASHER 1 pc.
229/8 013020-5240 9 442 610 009 9H14621000 UNION NUT:M5P0.8H4 1 pc.
229/9 010206-1240 9 442 610 201 1685999001 HEX-SOCKET-HEAD CAP SCREW:M6P1L12 1 pc.
230 146626-8920 9 461 611 512 16712G5500 BRACKET 1 pc.
236 139106-0500 9 411 610 055 16828W2510 FLAT-HEAD SCREW:M6P1.0H25 1 pc.
237 146620-0200 9 461 610 497 19247R8300 HEX-SOCKET-HEAD CAP SCREW 1 pc.
240 146650-0720 9 461 610 530 16870V0701 PULLING ELECTROMAGNET 1 pc.
240/8 146600-1700 9 461 610 427 16872V0701 O-RING 1 pc.
242 146658-2820 9 461 611 007 16876V5700 WIRE 1 pc.
243 146621-1000 9 461 611 665 093313VJ4 UNION NUT 1 pc.
246 139812-0500 9 411 610 077 16795V0700 EYE BOLT 1 pc.
247 146605-8120 9 461 611 771 167971C511 INLET UNION 1 pc.
248 146614-0200 9 461 610 481 8942276620 SPACER BUSHING 1 pc.
251 146125-0101 9 461 613 603 8973285580 FILTER 1 pc.
252 146125-0200 9 461 611 413 ME742568 COILED SPRING 1 pc.
275 146612-3920 9 461 611 497 16814G5500 BRACKET 1 pc.
276 010010-1640 9 442 610 001 81110161 BLEEDER SCREW:M10P1.5L16 4T 2 pc.
280 146360-5020 9 461 611 827 16830G5501 COVER 1 pc.
282 010206-1440 9 442 610 202 1678222J00 HEX-SOCKET-HEAD CAP SCREW:M6P1L14 2 pc.
800S 146019-3420 9 460 610 268 16720G5500 PUMP HOUSING 1 pc.
800S/1/6 146601-0700 9 461 615 373 ME741215 PACKING RING 1 pc.
804S 146232-0220 9 461 610 126 16770R8100 COMPRESSION SPRING 1 pc.
805S 146574-0120 9 461 610 358 093324232 PARTS SET 1 pc.
810S 146600-1120 9 461 610 423 8942285450 REPAIR SET 1 pc.
821S 146210-5720 9 461 616 128 ME742570 ROLLER SET 1 pc.
906 146643-1900 9 461 611 796 NAMEPLATE 1 pc.
